3D Knitted Spacer Fabric China

Material : 100% Polyester, 100% Fiberglass

Thickness : lightweight, 1~30mm

Supply Type : Make-to-Order

Type : 3D Knitted Spacer Fabric China, 3D Fiberglass Fabric

Pattern : YARN DYED

Style : TWILL

Width : 1300mm

Technics : woven

Feature : Heat-Insulation

Use : Construction

Yarn Count : 50D*50D

Weight : 740-2350

Density : Customizable

Model Number : 3D Knitted Spacer Fabric China

Certification : DNV & Lloyd's, ISO

Product name : 3D Knitted Spacer Fabric China

Application : GRP tank,wind power,chemical industry,building applications

Keyword : Fiber Glass Fabric

Packaging Details : polybag+carton+pallet

Port : Shanghai

Supply Ability : 10000 Square Meter/Square Meters per Month 3D Knitted Spacer Fabric China

MOQ : 100 Square Meters

Price : $14.75/Square Meters >=100 Square Meters

Contact Now

Products Description

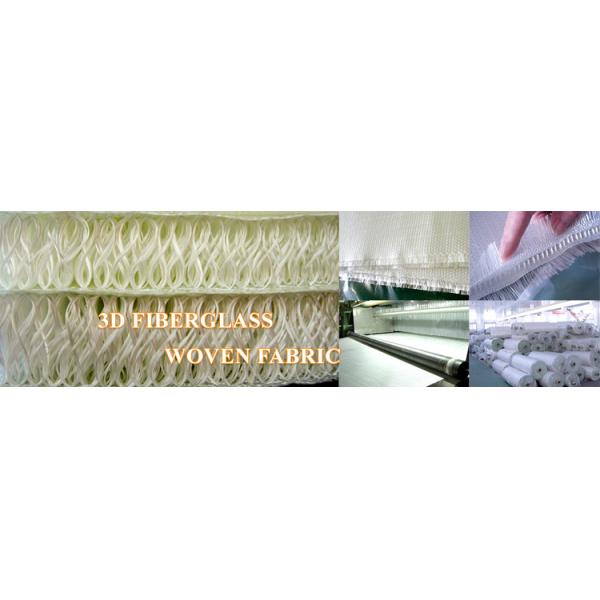

3-D spacer fabric construction is a newly developed concept. The fabric surfaces are strongly connected to each other by the vertical pile fibers which are interwoven with the skins. Therefore, the 3-D spacer fabric can provide good skin-core debonding resistance, excellent durability and superior integrity. In addition, the interstitial space of the construction can be filled up with foams to provide synergistic support with vertical piles.

3D Fiberglass including 3D Fiberglass Woven Fabric, 3D fabric composited sandwich Panels

Get Sample & Quotation

PRODUCT SPECIFICATIONS

Area Weight (g/m2)	Core Thickness (mm)	Density of Warp (ends/cm)	Density of Weft (ends/cm)	Tensile strength Warp (n/50mm)	Tensile strength Weft (n/50mm)
740	2	18	12	4500	7600
800	4	18	10	4800	8400
900	6	15	10	5500	9400
1050	8	15	8	6000	10000
1480	10	15	8	6800	12000
1550	12	15	7	7200	12000
1650	15	12	6	7200	13000
1800	18	12	5	7400	13000
2000	20	9	4	7800	14000
2200	25	9	4	8200	15000
2350	30	9	4	8300	16000

Company Profile

Quality Assurance

Product packaging

Application

The products have broad application prospects in automobile, Locomotives, aerospace, marine, windmills, building and other industries.

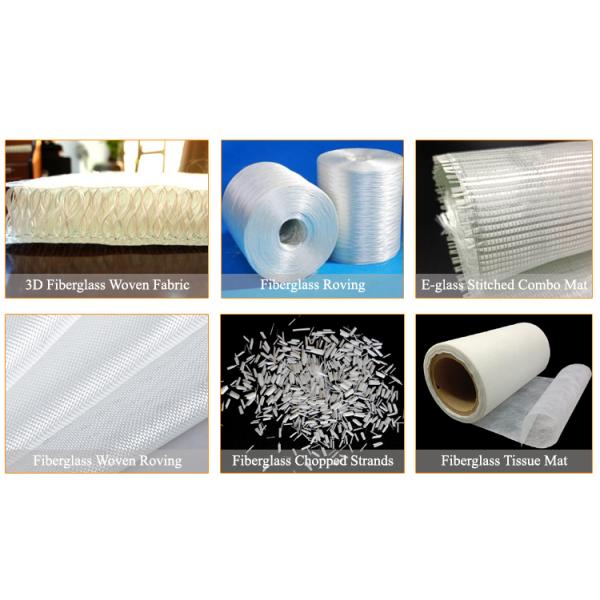

Recommend Products
